Nothing is smarter than SMART
Smart MPD · PLF · Color LCD · Combined Control
The next-generation flagship power regulator integrating all of Paraent's power regulator technologies

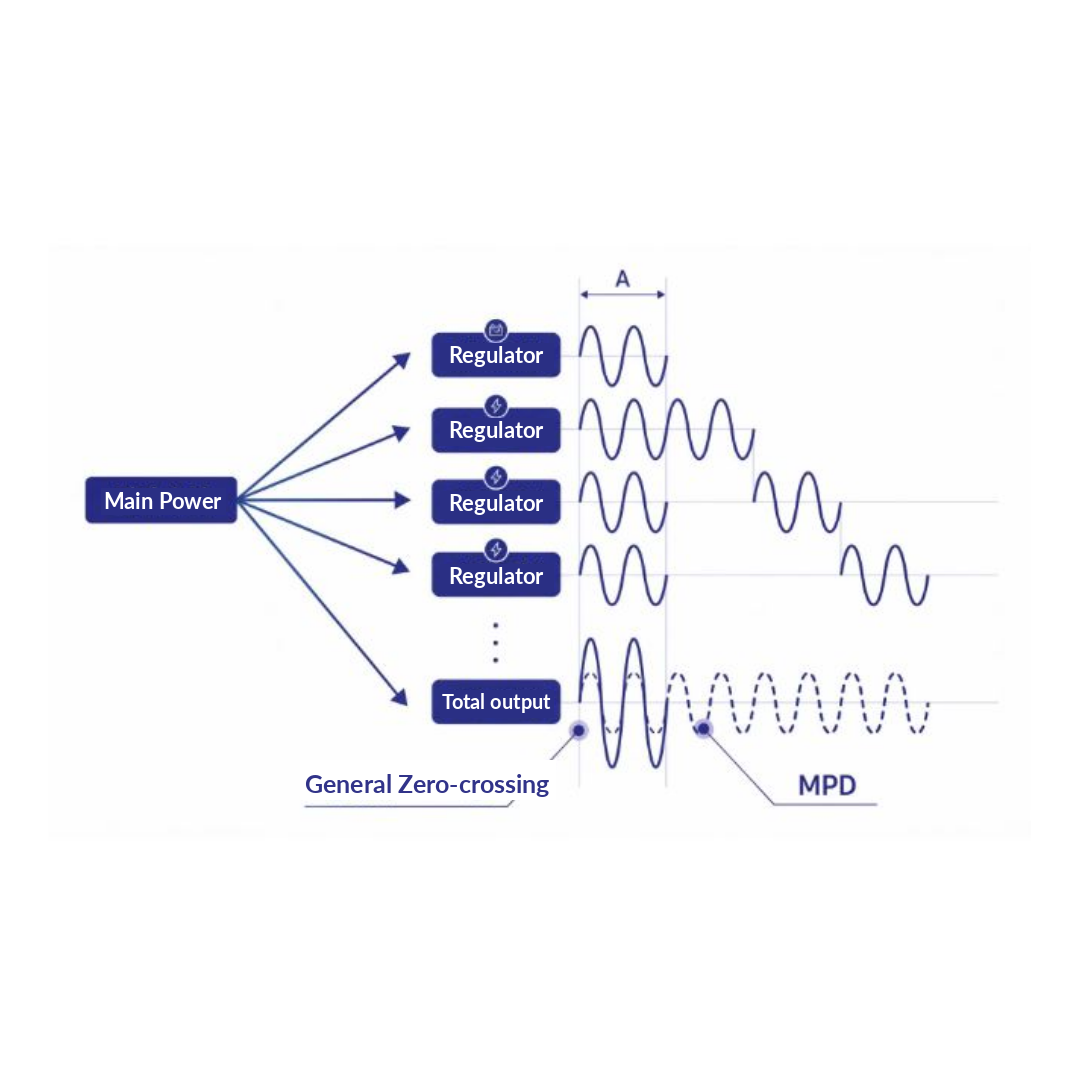

The Max Power Distribution Control function smooths main power by distributing power among multiple power regulators when controlled with zero-crossing. Improves power factor and reduces peak power.
When multiple parallel loads are connected to a single power regulator, this function detects partial load open circuits. Auto-tuning acquires load characteristic patterns for accurate detection.
Improved user interface with color LCD and 18-key pad. Enables self-diagnostics, test mode, easy parameter settings. Can be attached to the unit or mounted separately on a panel.
Saves cost and space by mounting up to 3 single-phase power regulators in one body. Supports various wiring methods: 1P1L, 1P2L, 1P3L, 2P2L, 3P2L, 3P3L, 3P4L, 3P6L.
1) Power Factor Improvement
- Max Power Distribution Control smooths main power by distributing power among multiple power regulators when controlled via zero-crossing.

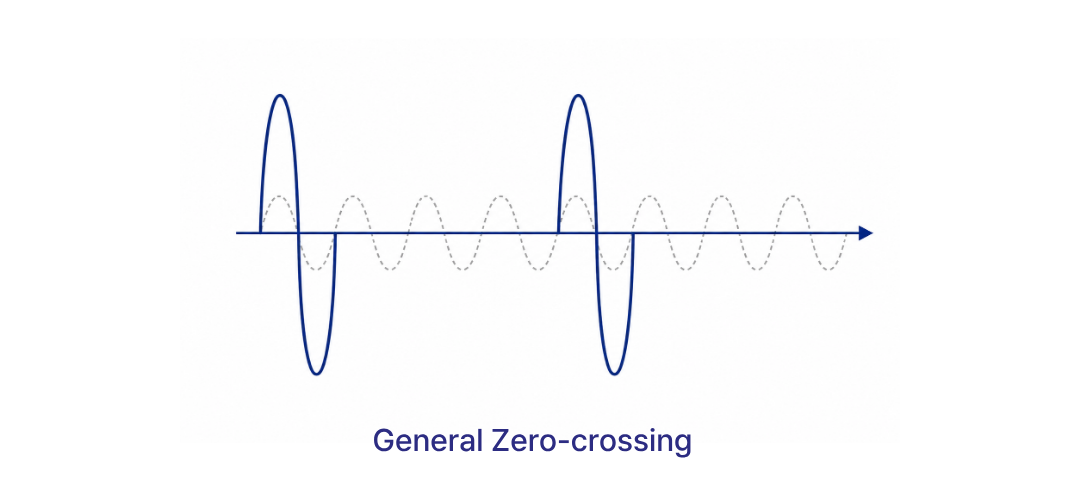

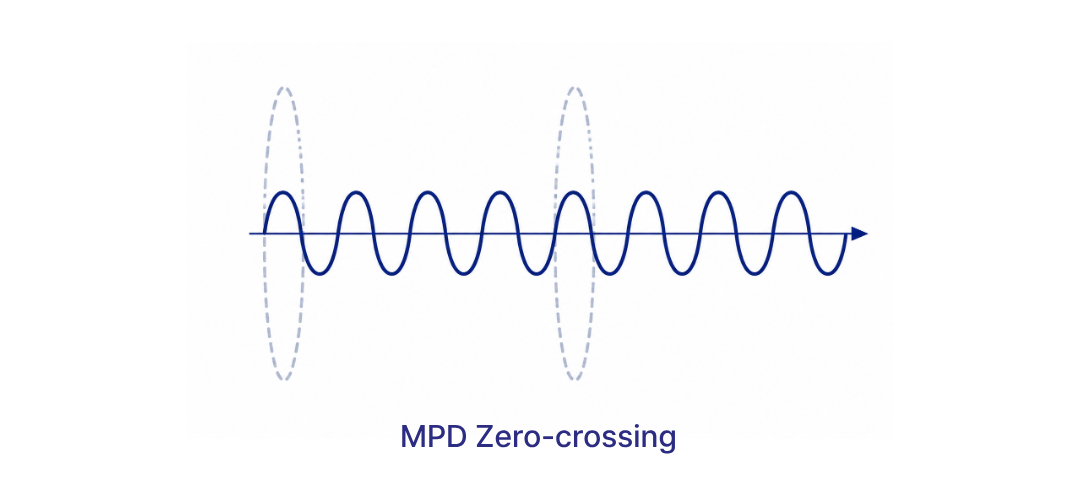

- The waveform difference between standard zero-crossing and power distribution control is shown below.
(Patent No. 10-1405243: Power regulator with partial load failure detector and detection method)

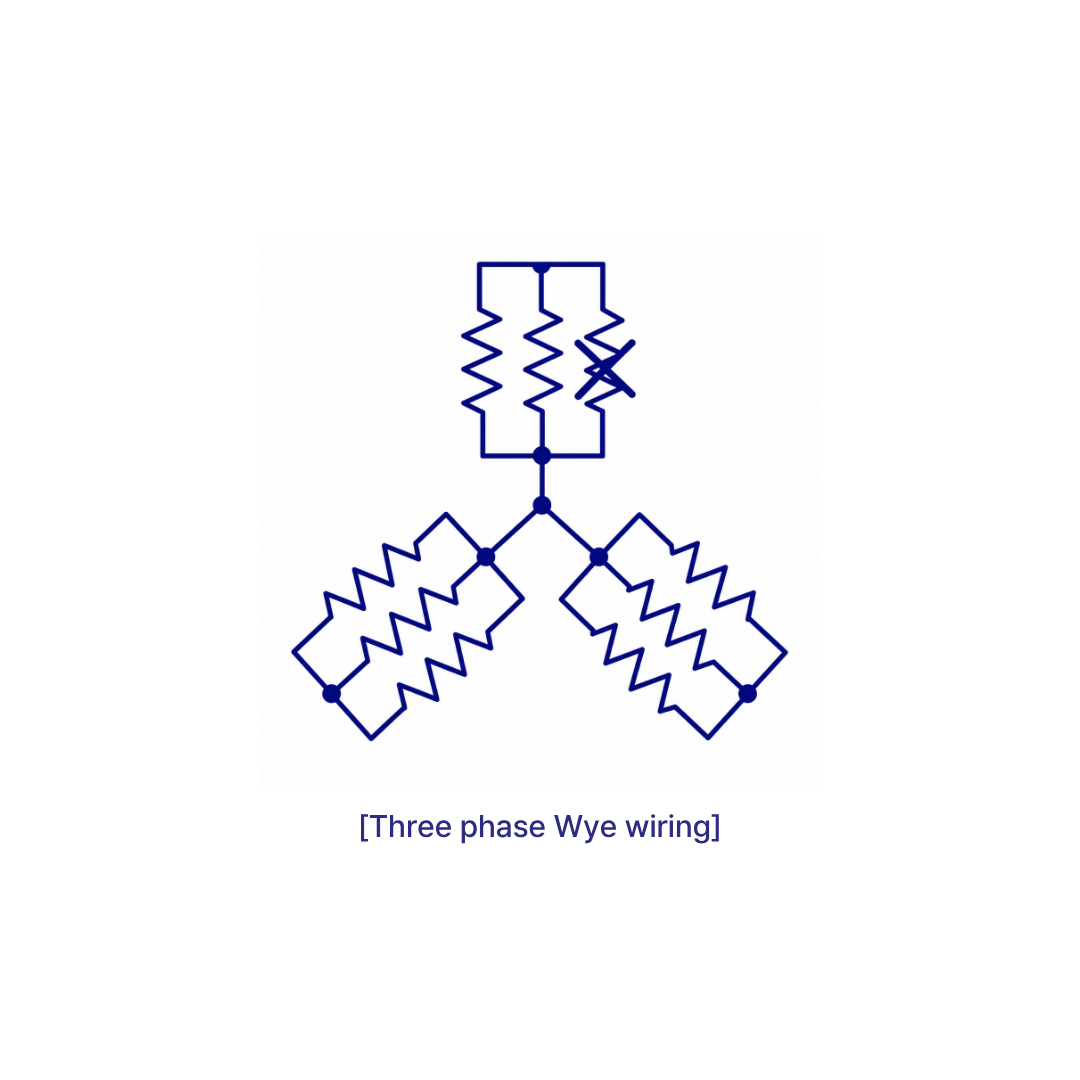

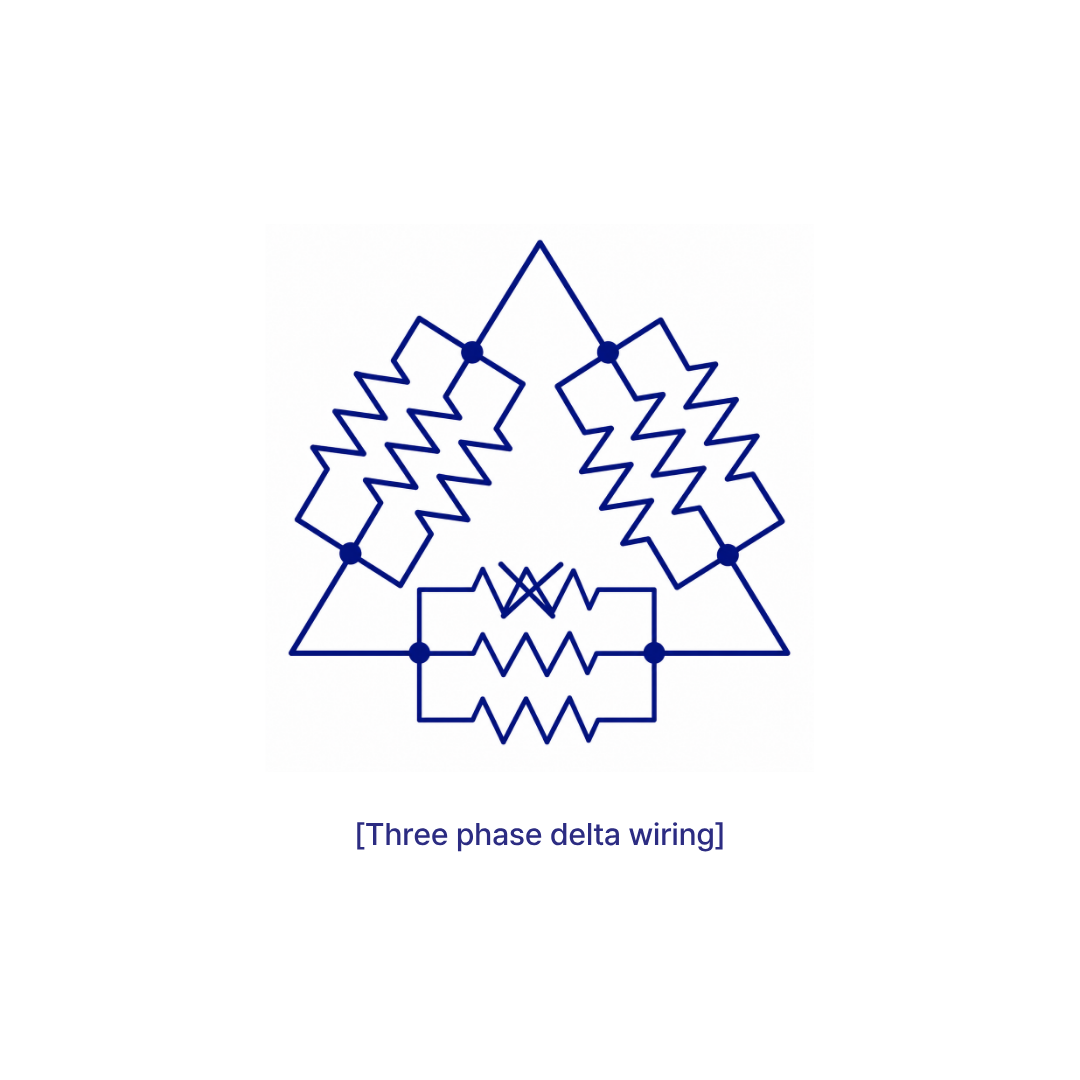

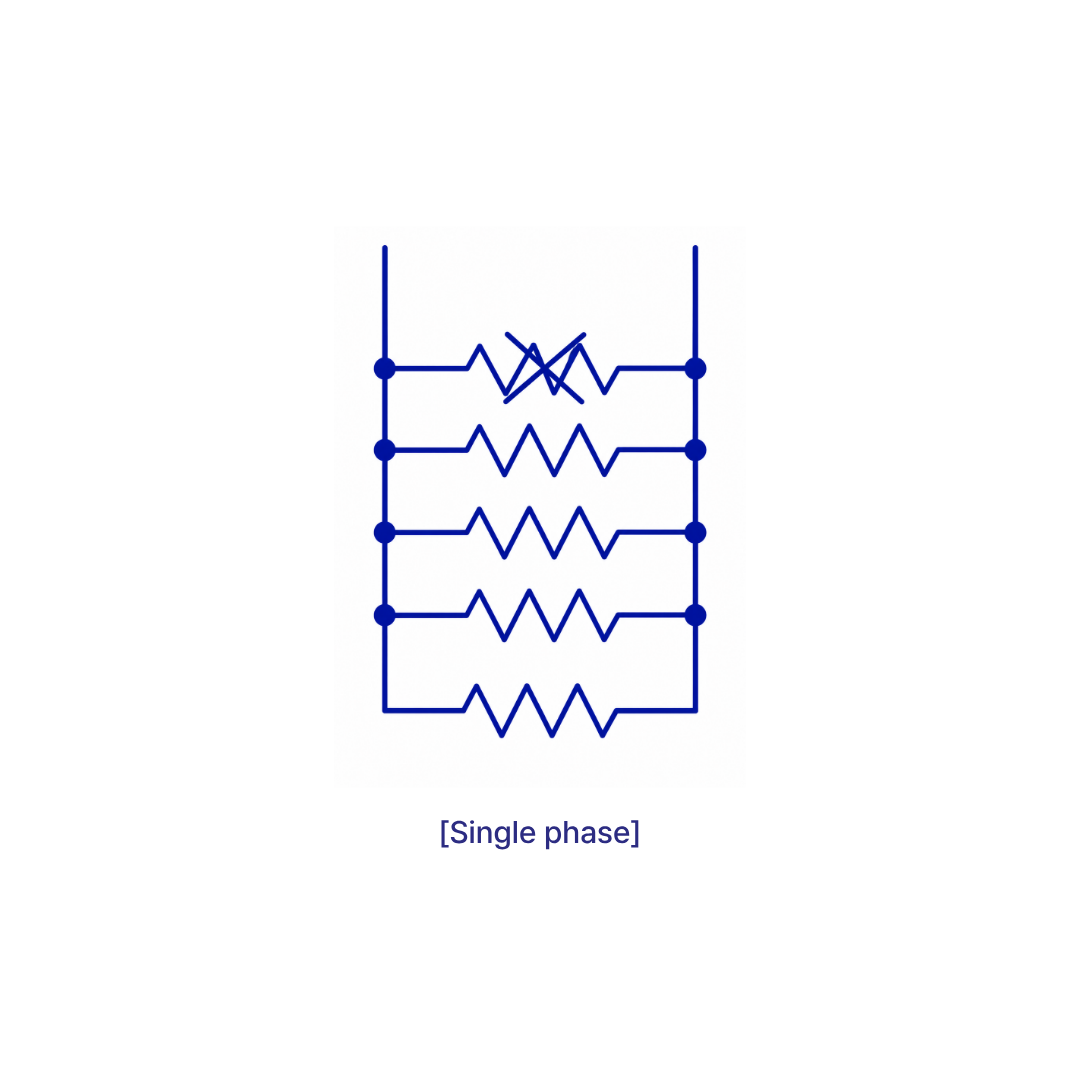

- Detects partial load open-circuits when multiple parallel loads are connected to a single power regulator.
- Auto-tuning acquires load characteristic patterns to achieve accurate partial load failure detection.
- Improved user interface with color LCD and 18-key pad.
- Self-diagnostics, test mode, and easy parameter settings for improved user convenience.
- PSD can be attached to the unit or mounted separately on the front panel for better visibility.

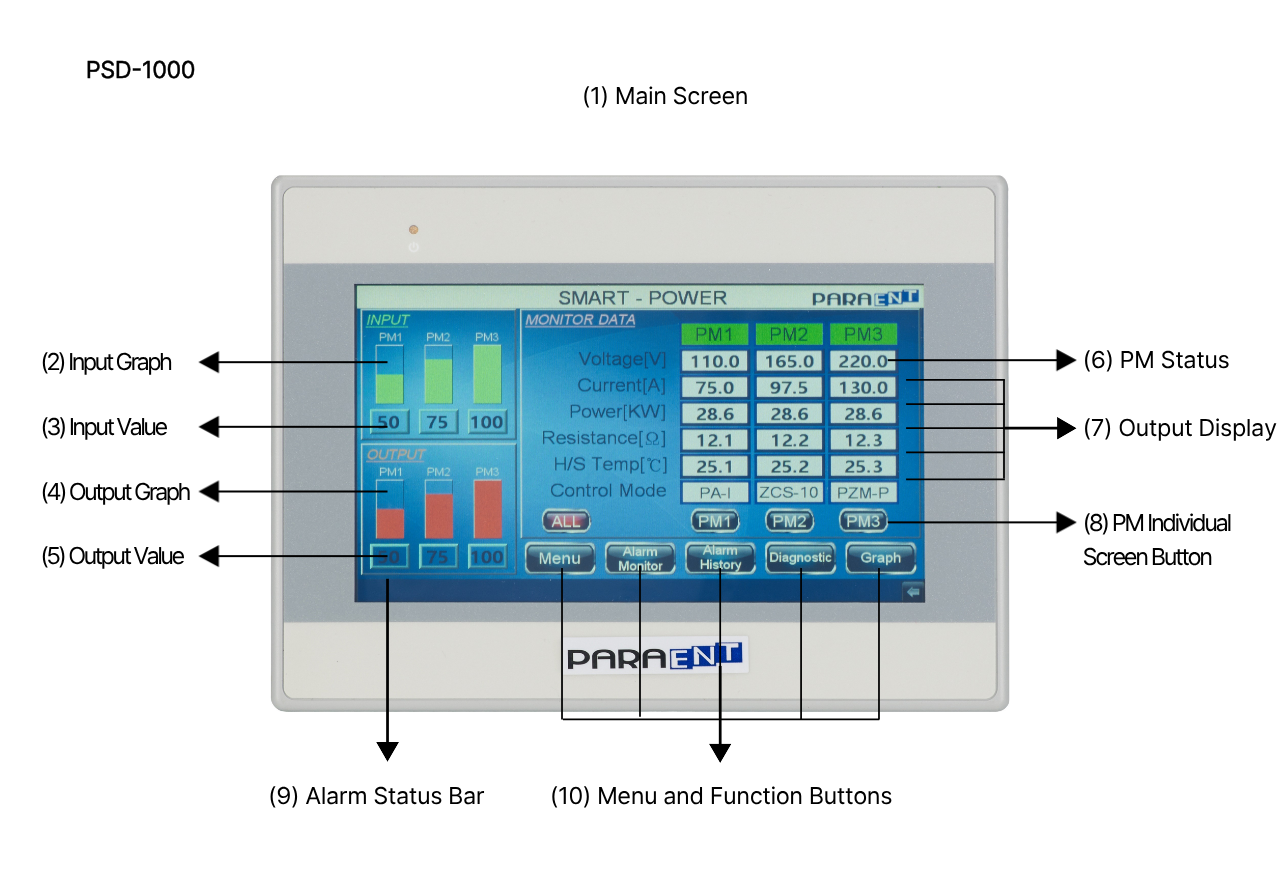

- Displays voltage / current / power / resistance (temperature: optional) and cycles through parameters for each phase.
- Graphically displays input and output values for enhanced real-time visibility.
- The display unit is detachable; when mounted on the panel front, there is no need to install separate ammeters or voltmeters.
- Up to 3 single-phase power regulators in one body, each controlled by its own input signal. Compatible with all heater wiring configurations.
- Each alarm can be routed to one of 3 relays per user selection.
- User selects whether output is cut off when an alarm triggers.
- Fan speed driven by heatsink temperature as specified by user to extend fan life.
- Warning and alarm thresholds for heatsink overheat set at user-defined temperatures.
- Alarm types:
① Over-current ② Fuse open ③ Heater open ④ Heatsink overheat ⑤ SCR element fault ⑥ Load imbalance ⑦ Main power cutoff ⑧ FAN fault ⑨ Frequency noise ⑩ PLF (Partial Load Failure)
- Communication type: RS-485 2-wire half-duplex
- Communication speed: 4800, 9600, 19200, 38400, 57600, max 115,200bps
- Max connection: 32 units
- Protocol: Modbus-RTU
- READ & WRITE operations via communication
- USER INTERFACE provided
Composed of SMC (control unit) + PM (power module) structure.
| Item | Specifications |
|---|---|
| Operating Voltage | 110V / 220V / 380V / 440V (Min. 50V, Max. 500V) |
| Allowable Voltage Variation | ±10% of rated voltage |
| Rated Current | 25A, 40A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 320A, 400A, 500A, 700A, 1000A, 1400A, 2000A, 2500A |
| Rated Current (CE Certified) | 25A, 40A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 320A, 400A, 500A |
| Rated Current (UL Certified) | 25A, 40A, 55A, 70A, 100A, 130A, 160A, 200A, 250A, 320A, 400A, 500A |
| Rated Frequency | 50/60Hz (auto-select) |
| Minimum Load Current | 1A |
| Output Range | Phase-angle / Zero-crossing: 0 ~ 99.8% |
| Control Power | DC 24V |
| Power Consumption | Max. 15W (FAN power separate) |
| Control Input Signal | 4~20mA (impedance 150Ω) 3CH / 0~5V, 1~5V, 0~10V, 10K VOL (selectable) 1CH |
| Input Contact | Switch Input 3CH |
| Output Contact | Relay Out 6CH (Alarm 3CH, Fan Control 3CH) |
| Control Method | Phase-angle / Zero-crossing (MPD option) / PZ combined mode |
| Dielectric Strength | AC 3KV (Step 1Min.) |
| Insulation Resistance | 10MΩ or more |
| Cooling Method | 55A and below: natural cooling / 70A and above: forced cooling |
| Alarm Functions | Over-current (OC), Over-current Warning (OCW), Heatsink Overheat (OTW/OT), Fuse open (FUSE), Load break (LINE), SCR fault (SCR), Partial Load Failure (PLF), Main power cutoff (MPF), FAN fault (FAN), Load imbalance (UL) — 10 types |
| Operating Temperature | 0 ~ 40℃ |
| Humidity Range | 30% ~ 90% RH (no condensation) |
| SMC (Control Unit) | 32-bit CPU (12-bit ADC) |
| PM (Power Module) | Output voltage / current RMS measurement |
| PSD (Display) | Color LCD and 18-key pad |
| Communication | RS-485 2-wire, max 115,200bps, Modbus-RTU, max 32 units |
| Item | Specification |
|---|---|
| Resolution | 800 × 480 |
| Brightness · Contrast | 350 cd/m² · 500:1 |
| Backlight | LED · Lifetime 30,000 Hrs or more |
| Colors | 16.7M Colors |
| Touch Type | 4-wire Resistive |
| Memory | Flash 128M · RAM 128M |
| USB / Ethernet | USB 2.0 × 1 · 10/100BASE-T × 1 |
| COM Ports | COM1: RS-232 · COM2: RS-485 2W/4W · COM3: RS-485 2W |
| Control Power | DC 24V ±20% · Current consumption 350mA |
| Operating Temp. · Humidity | 0 ~ 50℃ · 10 ~ 90%RH (no condensation) |
| Protection | Front panel NEMA4 / IP65 |
| Dimensions (W×H×D) | 200.3 × 146.3 × 34.0 mm · Panel cutout 192 × 138 mm |
* SMC · PM dimensions vary by current capacity. Please refer to the catalog for detailed dimensions.
